Circular Guide Rail Precision Transmission Technology: A Core Breakthrough in Closed-Loop Conveying for Industrial Automation

As industrial automation evolves towards higher precision, greater flexibility, and faster cycle times, traditional linear conveyors and indexing mechanisms are no longer sufficient to meet the transmission demands of modern intelligent manufacturing. Circular guide rails, as the core carrier of precision closed-loop conveying systems, have overcome the precision and efficiency bottlenecks of conventional conveying equipment through their proprietary transmission design and micron-level control technology, becoming a core transmission component in high-end manufacturing production lines. This article deeply analyzes the core technological value of circular guide rails from four dimensions: technical principles, structural optimization, performance control, and scenario adaptation, providing professional technical support for the upgrading of industrial automation production lines.

I. Core Transmission Principle of Circular Guide Rails: The Technological Foundation of Closed-Loop Precision Conveying

Circular guide rails adopt the core principle of closed-loop arc-shaped guide rails + rolling friction transmission. Unlike traditional sliding friction conveying methods, this involves precise meshing of rollers and V-shaped guide rail surfaces, enabling the slider to run continuously and smoothly along the closed-loop track. Its core transmission logic relies on precision mechanical coordination and servo drive linkage to transform rotary motion into closed-loop linear cyclic motion, balancing high-speed transmission in straight sections with smooth transitions in circular sections. This fundamentally solves the problems of large gaps, operational stuttering, and rapid precision loss in traditional conveying equipment.

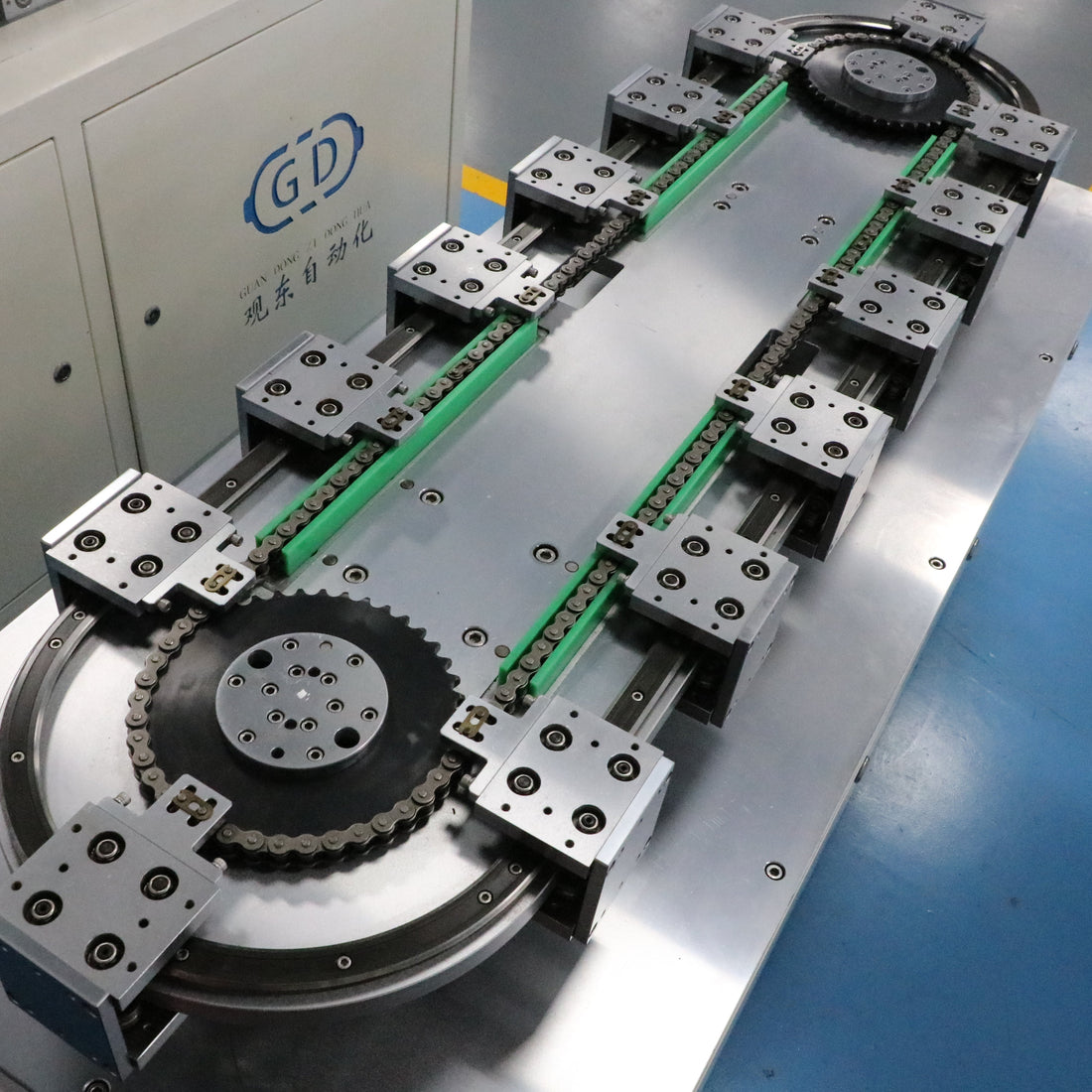

This transmission system can be equipped with three drive modes: synchronous belt, precision chain, and rack and pinion, adapting to different load, speed, and precision requirements. Combined with real-time feedback from servo motors and encoders, it achieves precise and controllable motion trajectory. Whether in low-speed precision assembly or high-speed cyclic detection, it maintains stable transmission performance, laying the technological foundation for circular guideways in the field of precision conveying.

II. Precision Structural Design and Process Control: Key Elements for Precision Assurance

The high precision performance of the circular guideway stems from its refined structural design and rigorous manufacturing process. The main body of the track is made of high-rigidity bearing steel, undergoing three core processes: overall quenching, deep cryogenic aging, and precision grinding. The surface hardness reaches HRC60 or higher, significantly improving wear resistance and structural stability, effectively reducing wear and deformation during long-term operation.

The circular arc section of the track is manufactured using a one-piece molding process, eliminating splicing errors. The transition section between the straight line and the arc features a smooth chamfer design, reducing impact and vibration during slider changes. The slider assembly is equipped with a pre-tightening adjustment mechanism, eliminating the clearance between the rollers and the guide rail, achieving zero-backlash transmission while ensuring sufficient load-bearing rigidity. Furthermore, the modular splicing design allows the track to be flexibly combined into rectangular, elliptical, and circular closed-loop shapes, adapting to different production line layouts and balancing both precision and flexibility requirements.

III. Key Performance Indicators and Technological Advantages: Core Competitiveness Surpassing Traditional Conveyors

The core technological advantages of the circular guide rail are reflected in three key performance indicators: micron-level positioning, high-speed stability, and long-life operation. Its repeatability can reach ±0.03mm, meeting the precision assembly needs of industries such as 3C electronics, medical devices, and new energy; the maximum operating speed can reach 120m/min, with rapid start/stop response and no inertial offset, significantly improving production line cycle time.

Compared to traditional indexing plates and belt conveyors, circular guideways eliminate belt tension and backlash, resulting in lower operating noise, less maintenance, and a service life exceeding 50,000 hours. Their multi-slider independent operation design enables simultaneous operation at multiple workstations, optimizing production line processes, reducing idle travel losses, and increasing production efficiency by over 50% compared to traditional solutions. They also possess stronger heavy-duty capacity and anti-interference capabilities, making them suitable for complex industrial conditions.

IV. Technical Adaptation and Application in High-End Manufacturing Scenarios

Leveraging its core technological advantages, circular guideways are widely used in high-end manufacturing fields with stringent requirements for precision and efficiency. In the 3C electronics industry, they are used for precision assembly of mobile phone components, chip testing, and dispensing and fastening processes, ensuring the assembly accuracy of micro-components. In the new energy industry, they are adapted for lithium battery cell testing, module assembly, and photovoltaic component transmission, meeting the needs of high-speed, heavy-duty production lines.

In the automotive parts, medical consumables, and precision hardware industries, circular guideways also play a crucial role. Customized dustproof, waterproof, and cleanroom-specific models are available to meet the specific needs of different industries and harsh production environments. Its flexibility, high precision, and high efficiency perfectly meet the upgrade requirements of Industry 4.0 intelligent production lines, making it the preferred solution for automated closed-loop conveying.

Conclusion

With its precision transmission principle, rigorous structural process, and excellent performance, the circular guide rail has become a core technology solution for precision conveying in industrial automation, solving the precision and efficiency pain points of traditional conveying equipment. As the intelligent manufacturing industry continues to upgrade, the technological iteration and application scenarios of circular guide rails will continue to deepen, providing more reliable transmission support for the automation and intelligent upgrading of high-end manufacturing.
