High-Efficiency Operation Solutions for Linear and Circular Guide Rail Conveyor Lines in the Photovoltaic Manufacturing Industry

I. Operating Requirements of Photovoltaic Manufacturing Production Lines for Guide Rail Conveyor Lines

Photovoltaic manufacturing encompasses the entire process from silicon wafer processing, cell fabrication, and module packaging. Production lines are characterized by continuous mass production and high-cycle operation, with interference factors such as silicon powder dust and wet corrosion media present in the production environment. Simultaneously, cells and photovoltaic glass are thin and fragile workpieces, requiring high levels of vibration control and stability in the conveyor system. Unlike the precision electronics industry, photovoltaic production lines prioritize the wear and contamination resistance, heavy-duty durability, and long-term continuous operation capability of the guide rails, demanding low failure rates and easy maintenance of the transmission structure to adapt to the large-scale industrial production conditions.

II. Differentiated Applications of Two Types of Guide Rails in Photovoltaic Production Lines

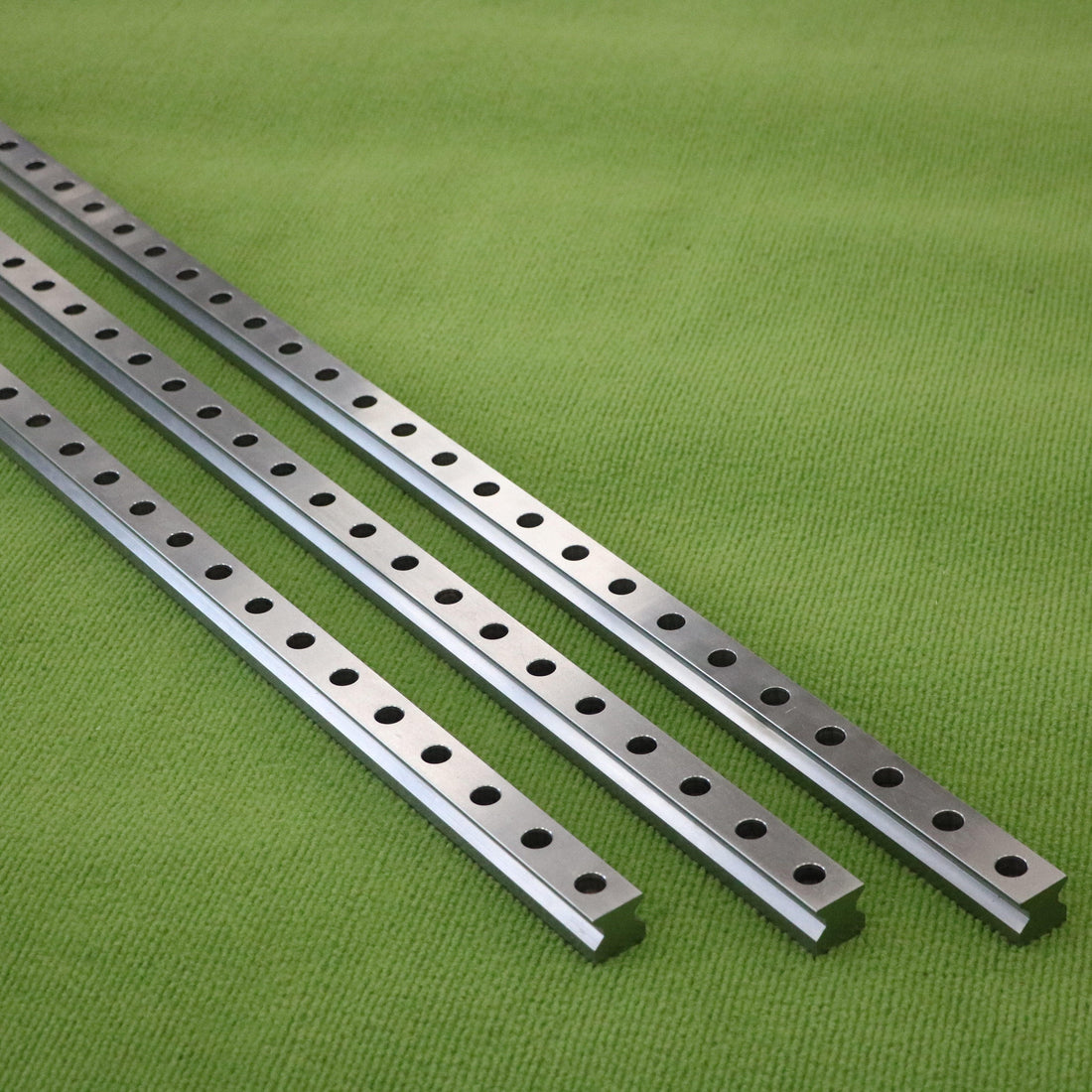

Linear guide rails offer high positioning accuracy and low operating vibration, and are widely used in precision photovoltaic processing steps, being integrated into silicon wafer cutting machines, cell screen printing machines, and fully automatic stringing machines. Relying on stable reciprocating linear motion, the displacement of cutting, printing, and welding stations is precisely controlled, reducing issues such as microcracks and alignment deviations in solar cells, and ensuring a high product yield. The circular guide rail conveyor line adopts a closed-loop circulation structure, suitable for high-volume flow processes, commonly used in solar cell sorting, module appearance inspection, and pre- and post-lamination conveying stages. It can achieve synchronous flow across multiple stations, shortening workpiece transfer intervals and significantly improving the flow efficiency of photovoltaic module production lines.

III. Guide Rail Combination Operation Scheme and Production Line Optimization Strategy

To meet the production needs of the photovoltaic industry for cost reduction and efficiency improvement, the production line can adopt a combination layout of linear guide rails and circular guide rails. Linear guide rails are used for precision machining and single-point alignment processes to control production accuracy; circular guide rails are used for batch conveying and cyclic inspection processes to improve production capacity. Simultaneously, to address the dusty and humid conditions of photovoltaic production lines, dustproof seals and anti-corrosion protection structures are added to the guide rails, and regular lubrication and impurity removal maintenance is performed. Optimizing the guide rail layout can not only reduce equipment operating energy consumption and failure probability, but also compress production space, providing an efficient and stable transmission solution for large-scale and intelligent mass production of photovoltaics.
