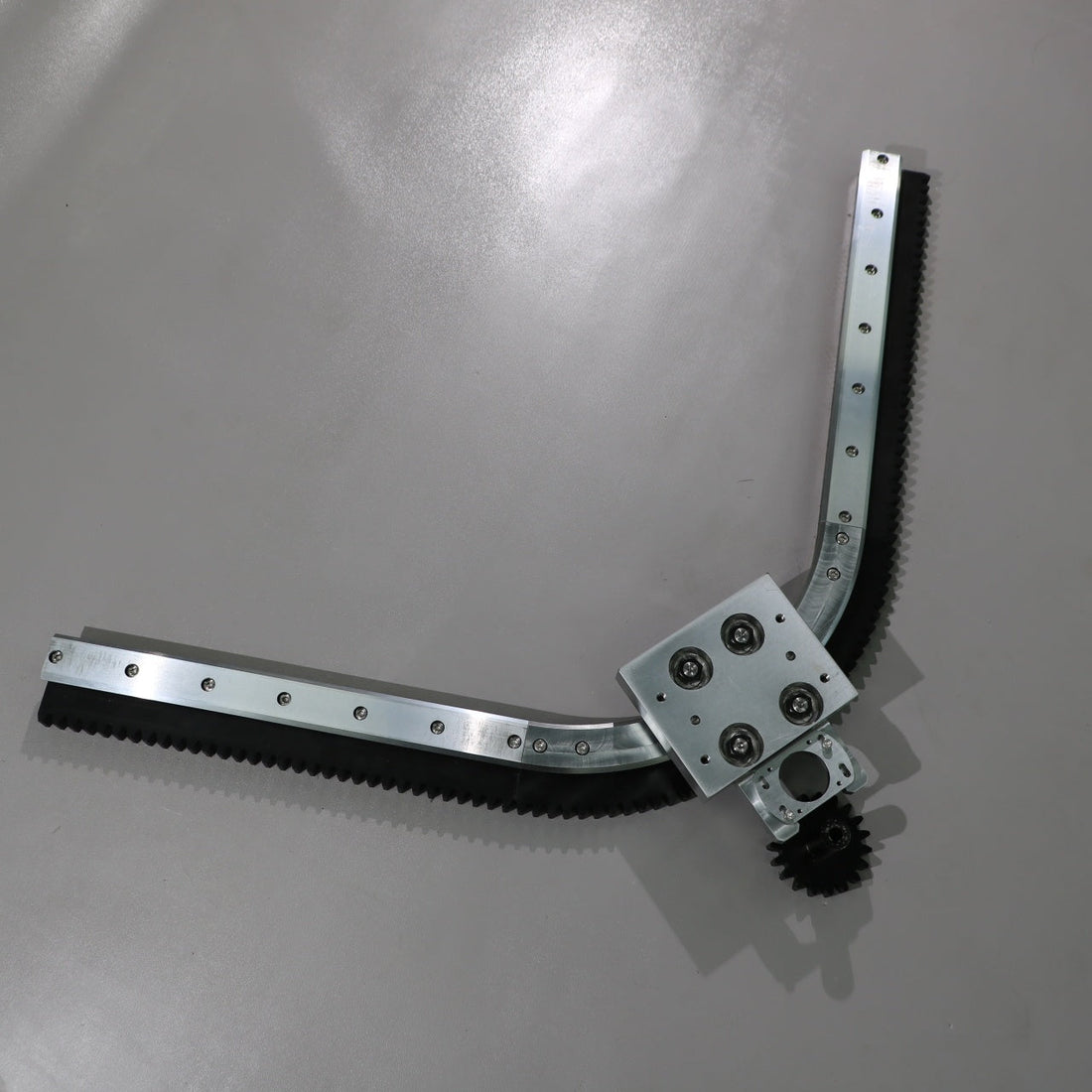

Slanted Mount Adaptor Linear Guide Rail Circular Guide Rail Conveyor Line for Small Appliance Shell Coating

I. Slanted Mount Adaptor Linear Guide Rail: Flexible Multi-Angle Installation

The slanted mount adapter linear guide rail supports inclined and multi-angle installation, breaking the limitation of traditional guide rails that can only be installed horizontally. The installation angle can be adjusted according to the coating process requirements, adapting to the irregular shape coating and inclined material hanging operations of small appliance shells. The guide rail structure fits tightly, ensuring no positioning deviation or jamming after slanted installation, and stable positioning accuracy. It possesses excellent load-bearing capacity and adaptability, meeting the needs of special processes such as multi-angle material feeding and flip-side coating, providing flexible and stable guiding support for the coating production line.

II. Slanted Mount Adaptor Circular Guide Rail Conveyor Line: Precise Flow at Coating Stations

The circular guide rail conveyor line is equipped with a slanted mount adapter linear guide rail module, enabling multi-angle inclined movement and cyclic conveying, perfectly adapting to the special process requirements of small appliance shell coating. The equipment operates smoothly and stably, ensuring workpieces remain stable and do not sway or fall off during inclined conveying, effectively preventing problems such as uneven coating, paint runs, and dents. Its multi-station closed-loop design allows for continuous operation of the entire process, including feeding, dust removal, spraying, curing, cooling, and unloading, adapting to the continuous production rhythm of the painting workshop.

III. Small Appliance Casing Spraying Transfer Line:

Flexible Spraying Improves Quality and Efficiency This small appliance casing spraying transfer line is custom-designed based on an inclined, adaptable circular guide rail system, specifically designed for the spraying processes of various small appliance plastic and metal casings. The production line angle is adjustable and highly adaptable, accommodating the inclined and 3D spraying needs of casings of different specifications, solving the pain points of traditional assembly lines such as numerous dead corners and uneven coloring. Stable operation and smooth flow effectively improve the uniformity of small appliance casing spraying and the appearance of finished products, reducing defect rates and achieving automated, high-quality mass production of small appliance casings.
