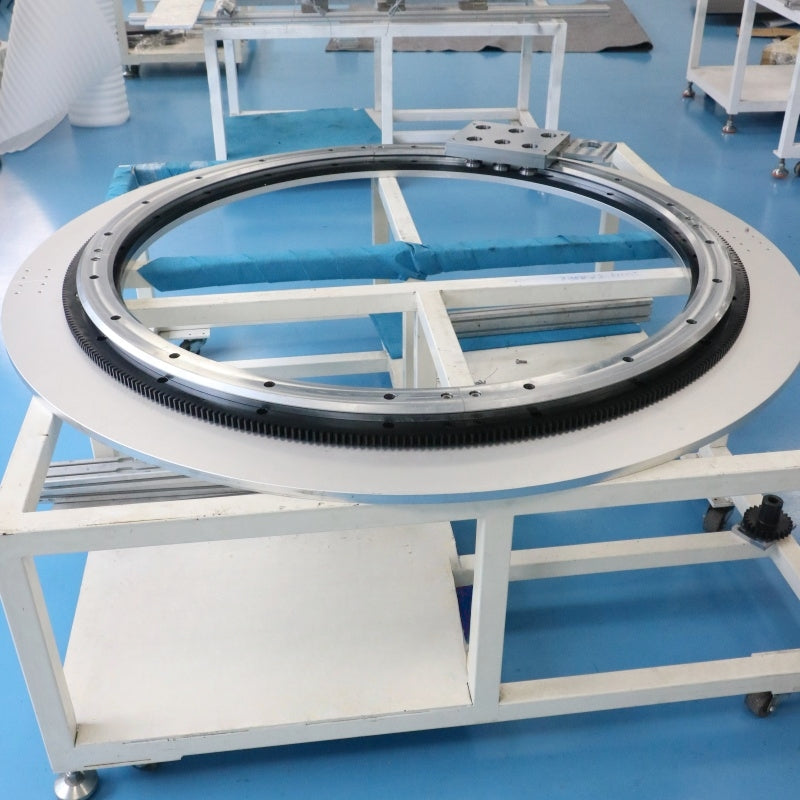

Top-Mounted Linear Guide Rails, Circular Guide Rail Conveyor Lines, Top-Lifted Workpiece Conveyor Lines

I. Top-Mounted Linear Guide Rails: Space-Saving and Adaptable

Top-mounted linear guide rails utilize a top-mounted installation structure, overturning traditional side-mounted and bottom-mounted layouts. They can be directly fixed to the top of the equipment or above the frame. The installation method is flexible and stable, without occupying the bottom or side working space of the equipment, perfectly solving problems such as bottom dust accumulation, material interference, and insufficient ground space. The guide rails have high running accuracy and uniform load-bearing capacity, ensuring smooth movement without deviation or jamming under lifting conditions, and are suitable for various automated equipment requiring suspended conveying and high-level operations.

II. Top-Mounted Circular Guide Rail Conveyor Lines: Clean and Smooth Suspended Conveying

Circular guide rail conveyor lines are equipped with top-mounted linear guide rail modules, adopting an overall top-mounted layout to achieve suspended, circulating conveying of workpieces. This effectively avoids contamination of the rails and workpieces by ground dust, oil, and waste, maintaining a clean and stable conveying process. The equipment operates at a high level, offering a wide field of vision and unobstructed ground access, facilitating personnel inspection and equipment maintenance. It can continuously complete multiple processes such as workpiece hoisting and transfer, suspended assembly, and high-level inspection, adapting to various complex workshop layouts.

III. Top-Mounted Workpiece Conveyor Line: High-Efficiency Production with Spacious

 Space Utilization The top-mounted workpiece conveyor line is custom-designed based on a top-mounted circular guide rail system, specifically designed for production scenarios with limited workshop space and densely packed equipment at the bottom. The top-mounted structure maximizes the use of the workshop's vertical space, improving site utilization and avoiding equipment interference issues. The production line operates stably, is highly adaptable, and offers high conveying accuracy, effectively improving workpiece assembly and inspection efficiency, helping enterprises achieve suspended, clean, and highly efficient automated production.
