Circular Guide Rails: Core Equipment for Precision Circular Conveying, Empowering Flexible Automated Production Lines

I. Basic Definition of Circular Guide Rails: Core Component of Automated Circular Conveying

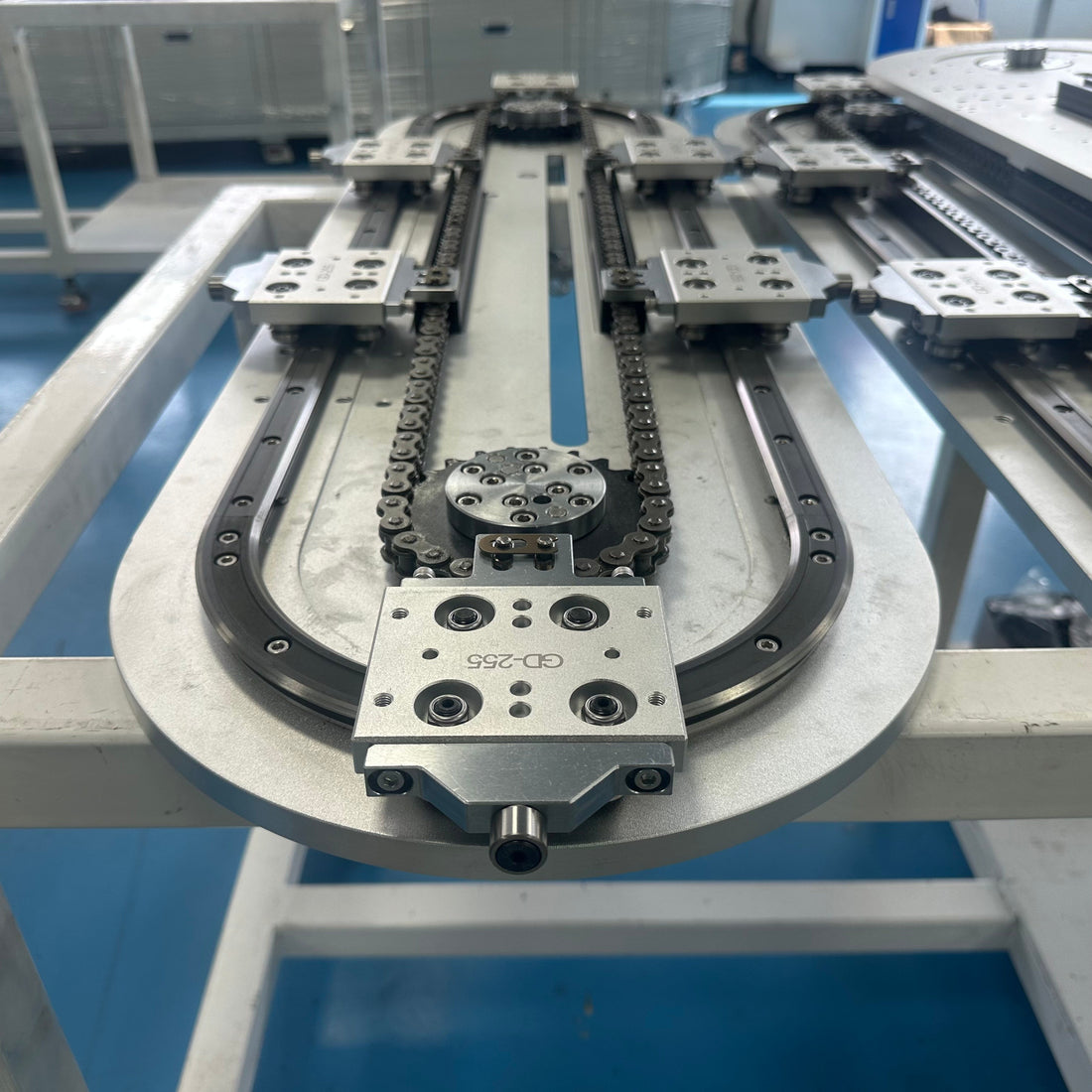

In non-standard automation, flexible production lines, and precision assembly and testing equipment, circular guide rails (circular guide rails, arc-shaped circular conveyor lines) have gradually replaced traditional linear conveyors, double-speed chains, and roller conveyors, becoming the mainstream conveying solution for multi-station circular operations. Simply put, a circular guide rail is a closed-loop circulating motion track system composed of linear guide rail sections and arc-shaped rotating sections. Combined with circulating slides, precision drive units, and station locking and positioning mechanisms, it enables tooling fixtures to achieve continuous all-weather circulation, intermittent start-stop, and high-precision fixed-point stopping.

Compared to traditional linear conveyor equipment, which can only travel in one direction, has long idle strokes, large footprint, and poor repeatability, the biggest advantages of circular guide rails are continuous closed-loop operation without idle strokes, dense station layout, micron-level repeatability, and modular rapid expansion. It is ideally suited for high-frequency precision processes such as multi-process continuous assembly, visual inspection, precision dispensing, laser marking, and airtightness testing.

Regardless of whether it's a circular, square, or elliptical ring guide rail, the core technical logic is completely consistent; only the layout and shape can be flexibly adjusted according to the available workshop space.

II. Detailed Explanation of the Overall Structure and Closed-Loop Operation Principle of Ring Guide Rails

Many field engineers only know that they are easy to use, but they are unclear about the internal structure of ring guide rails, leading to problems such as misalignment, abnormal noise, inaccurate positioning, and shortened lifespan during later debugging. Below, we will explain it thoroughly from two levels: hardware structure and operating logic.

1. Complete Core Components of Ring Guide Rails

① High-Precision Quenched Rail Body
Made of high-carbon chromium bearing steel, integrally forged and hardened, with a surface hardness of HRC60 or higher. The entire rail is precision ground in one piece, with zero steps and zero misalignment at the interface between straight and curved sections. It remains unchanged and does not loosen during long-term high-speed operation, forming the foundation for the overall line accuracy and rigidity.

② Heavy-duty Circulating Sliding Slide Unit
Built-in ball/roller circulating retention structure. Depending on the on-site load, a light-load high-speed ball structure or a medium-to-heavy-load roller structure can be selected. The slide has a built-in tooling mounting reference surface, allowing direct mounting of jigs, tooling plates, and product carriers, adapting to the flow of various workpiece specifications.

③ Closed-Loop Synchronous Drive System
Industry mainstream: servo motor + high-precision synchronous belt closed-loop drive; silent chain drive for heavy-duty long-distance scenarios; contactless linear motor drive optional for ultra-high cleanliness and high-precision workstations. Full-process closed-loop encoder feedback ensures stable speed and minimal start-stop impact.

④ Workstation Pneumatic/Mechanical Secondary Locking and Positioning Mechanism
This is crucial for the precision assembly capability of the ring guide rail. After the slide reaches the designated workstation, it automatically locks with mechanical pins or wedges, offsetting belt and transmission gaps to achieve a stable ±0.02mm~±0.05mm repeatability positioning accuracy, meeting the stringent requirements of press-fitting, welding, and visual alignment.

2. Complete Closed-Loop Workflow of Circular Guide Rail

PLC sends cycle signal → Servo driver synchronously adjusts speed → Synchronous belt/chain drives all slides forward synchronously → Photoelectric sensor triggers upon reaching the target workstation → Drive pauses + automatic locking and positioning → Robot/manipulator/process head completes operation → Unlocks and releases → Enters the next cycle, enabling continuous production 24/7.

III. Core Technologies of Circular Guide Rail: Precision, Rigidity, Drive, and Anti-deviation Control

The usability, stability, and durability of a circular guide rail depend entirely on these four core technologies, which are also crucial points to check during procurement and acceptance.

1. High-Precision Splicing and Dynamic Flatness Control Technology for the Entire Circular Guide Rail

Circular guide rails are most susceptible to uneven joints and track twisting. Reputable manufacturers use integrated tooling and correction processes, strictly controlling the flatness of the entire line to within 0.02mm, ensuring smooth curvature transition in arc turning areas, avoiding slide jamming, deviation, and abnormal noise, guaranteeing no shaking or offset during high-speed operation, and eliminating visual artifacts.

2. Heavy-duty, deformation-resistant rigidity and long-lasting wear-resistant technology: Production lines often operate continuously for 24 hours a day, requiring the rails to possess impact resistance, fatigue resistance, and wear resistance. Through deep heat treatment and ultra-precision grinding, combined with a reasonable pre-tightening design within the slide blocks, high rigidity load-bearing capacity is ensured without issues such as jamming, excessive resistance, or overheating and aging. This easily extends the equipment's service life to tens of thousands of hours.

3. Multi-slide synchronous following and low-clearance drive technology: Circular guideways often have a dozen slide blocks running simultaneously. Poor synchronization can lead to collisions, misalignment, and disrupted cycle times. The mature solution employs automatic tension compensation and a multi-axis synchronization algorithm for dynamic correction throughout the entire process, ensuring consistent spacing and start/stop of all slide blocks, preventing interference even at high speeds.

4. Dust-proof, chip-proof, low-maintenance, and sealed protection technology: Workshop dust, welding slag, and adhesive mist can all damage the guide rails. High-quality circular guide rails come standard with a fully enclosed dustproof cover and double-sided dustproof scrapers, achieving a protection level of IP54 or higher. This eliminates the need for frequent oiling and disassembly for cleaning, significantly reducing long-term maintenance costs.

IV. Actual Industry Application Scenarios of Circular Guide Rails

1. Mature Application Scenarios in Mainstream Industries

① 3C Electronics Precision Assembly Line: Circular assembly, dispensing, and testing of mobile phone frames, screen modules, and camera modules, requiring quiet, dust-free, high-speed, and high-precision operation.

② New Energy Lithium Battery and Energy Storage Production Line: Circular transport of battery cells, electrode testing, and module PACKs, requiring high cleanliness, stable cycle time, and strong safety.

③ Automotive Parts Automated Production Line: Precision pressing and online testing of small die-cast parts, sensors, and solenoid valves, requiring impact resistance, high rigidity, and reliable positioning.

④ Medical Consumables and Precision Instrument Packaging Line: High-speed circular transport in a clean environment, low noise, no pollution, and compliance with cleanroom standards.

2. Three Golden Rules for Engineers' Quick On-Site Selection:

First, calculate the actual load per workstation before deciding between ball bearing and roller bearing models to avoid insufficient rigidity and subsequent vibration.

Second, consider the required process precision. Ordinary conveyors do not require high-end positioning mechanisms, while precision assembly necessitates secondary locking.

Third, consider the workshop environment. For dusty or oily environments, choose reinforced protective models; for cleanrooms, choose fully sealed, silent models.

Conclusion: Overall, circular guide rails are currently a core component of flexible automation upgrades, offering extremely high cost-effectiveness, strong stability, and wide applicability in circular conveyor systems. Understanding the structural principles, mastering the core technologies, and selecting the appropriate model based on the working conditions allows for easy construction of a high-quality automated circular production line with fast cycle time, stable precision, and low maintenance.
