I. Production and Conveying Requirements of Precision Surface Mount Component Production Lines

Precision surface mount components are tiny and intricately structured, including resistors, capacitors, chips, and other microelectronic components, widely used in the production of various electronic circuit boards. The surface mount manufacturing process requires extremely high cleanliness of the production environment; even fine dust and impurities can easily cause short circuits, poor soldering, and other quality problems. Simultaneously, processes such as mounting, dispensing, and inspection require micron-level positioning accuracy. The conveyor equipment must be dustproof, dirt-proof, low-friction, and have high repeatability, while maintaining stable, jam-free operation to meet the high-precision, high-cleanliness automated production standards for surface mount components.

II. Differentiated Applications of Dustproof and Circular Guides in Production Lines

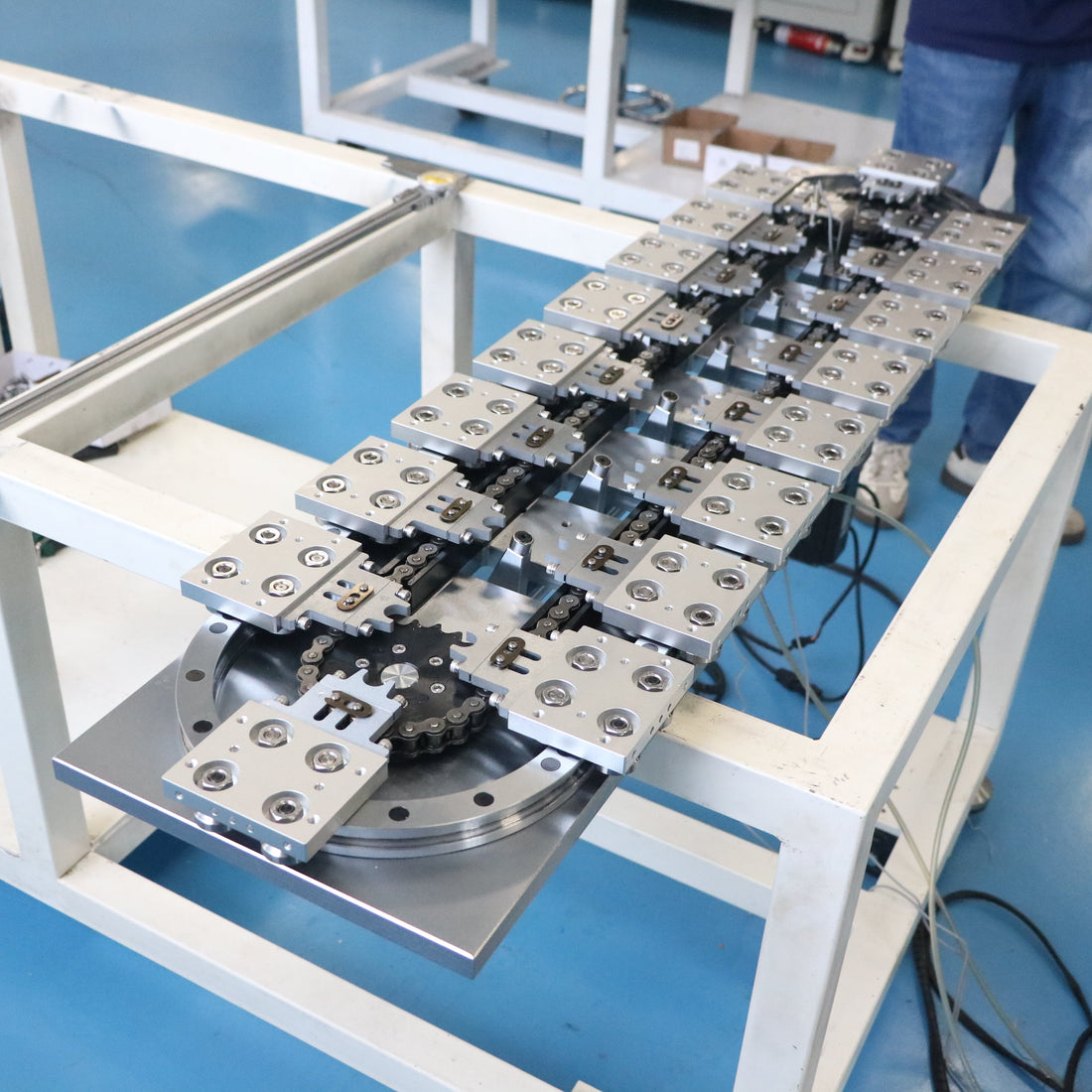

Embedded dustproof linear guides employ a closed, embedded dustproof structure with excellent sealing performance, effectively preventing dust and solder dross from entering the guide's interior. They are primarily used in core workstations such as surface mount, dispensing, and precision soldering. Its smooth operation and precise positioning enable high-precision reciprocating movement, ensuring accurate alignment of surface mount components and eliminating processing deviations. The circular guide rail conveyor line has a compact structure and strong circulation capability, and is widely used in circuit board transfer, finished product inspection, sorting, and storage processes. It can achieve synchronous circular conveying at multiple workstations, accelerating circuit board transfer cycles and adapting to continuous production operations of large-volume surface mount components.

III. Optimization Scheme for Dual-Rail Combinations in Surface Mount Production Lines

Precision surface mount component production lines generally adopt a combination layout of embedded dustproof linear guides and circular guides. Core precision machining stations rely on dustproof linear guides to isolate production dust and control processing accuracy; batch transfer stations utilize circular guides to improve conveying efficiency and shorten production cycles. Combined with the cleanroom conditions of the surface mount production line, low-dust lubricating grease is used to reduce contaminant generation. This combination scheme balances cleanliness, precision, and capacity, reducing component defect rates and providing a stable and reliable conveying solution for automated precision surface mount component production lines.
