Extendable Linear Guide Rails, Circular Guide Rail Conveyor Lines, Continuous Conveying Production Lines for Long Workpieces

I. Extendable Linear Guide Rails for Flexible Stroke Extension

The extendable linear guide rails adopt a modular splicing structure, allowing for flexible connection and stroke extension according to production site and process requirements without replacing the entire guide rail assembly. The guide rails feature high splicing precision, uniform joint gaps, smooth operation without jamming or deviation, and maintain stable positioning accuracy even after extension. This effectively solves the problems of fixed stroke, inability to extend, and high modification costs associated with traditional integrated guide rails, making it suitable for various long-stroke and long workpiece conveying and processing conditions.

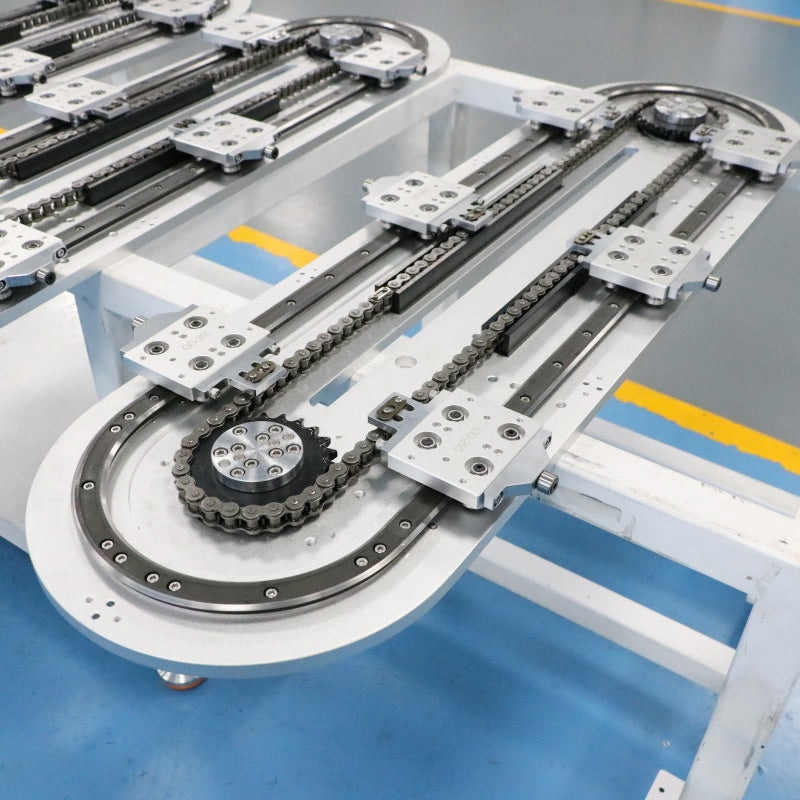

II. Extended Circular Guide Rail Conveyor Line for Smooth and Continuous Long-Distance Conveying

The circular guide rail conveyor line is equipped with extendable linear guide rail modules, supporting on-demand track extension and flexible workstation expansion, meeting the needs of ultra-long-distance cyclic conveying of long workpieces. The equipment features tight overall connection and stable operation, with no shaking or deviation during conveying, and can stably carry long, strip-shaped workpieces at a uniform speed. It can continuously complete processes such as loading, assembly, drilling, inspection, and unloading of long workpieces, ensuring a smooth and orderly long-distance conveying process.

III. Long Workpiece Continuous Conveying Production Line:

 Flexible Expansion and High-Efficiency Production The long workpiece continuous conveying production line is custom-designed based on a modular, extendable circular guide rail system, specifically designed for the automated continuous conveying of various long profiles, tubular workpieces, and long-sized accessories. The production line is highly expandable and flexible in modification; tracks can be lengthened and workstations expanded as production capacity and processes are upgraded, significantly reducing the cost of production line upgrades and modifications. It effectively improves the stability and production efficiency of long workpiece conveying, achieving standardized, continuous, and automated mass production of long workpieces.
