External Limiting Linear Guide Rail, Circular Guide Rail Conveyor Line, Workpiece Positioning and Conveying Production Line

I. External Limiting Linear Guide Rail: Precise Positioning and Reliable Limitation

The external limiting linear guide rail is equipped with an independent external limiting structure. The limiting stroke is adjustable, and the positioning lock is robust, effectively preventing problems such as slider overtravel, displacement, and inertial movement. Compared to internal limiting guide rails, the external limiting structure has stronger pressure resistance, is easier to debug, has a wider fault tolerance range, and its start/stop and reciprocating strokes are precisely controllable. It can meet the production requirements of high-precision alignment, fixed-point stopping, and limit protection for various workpieces, providing a stable positioning foundation for automated conveying and assembly.

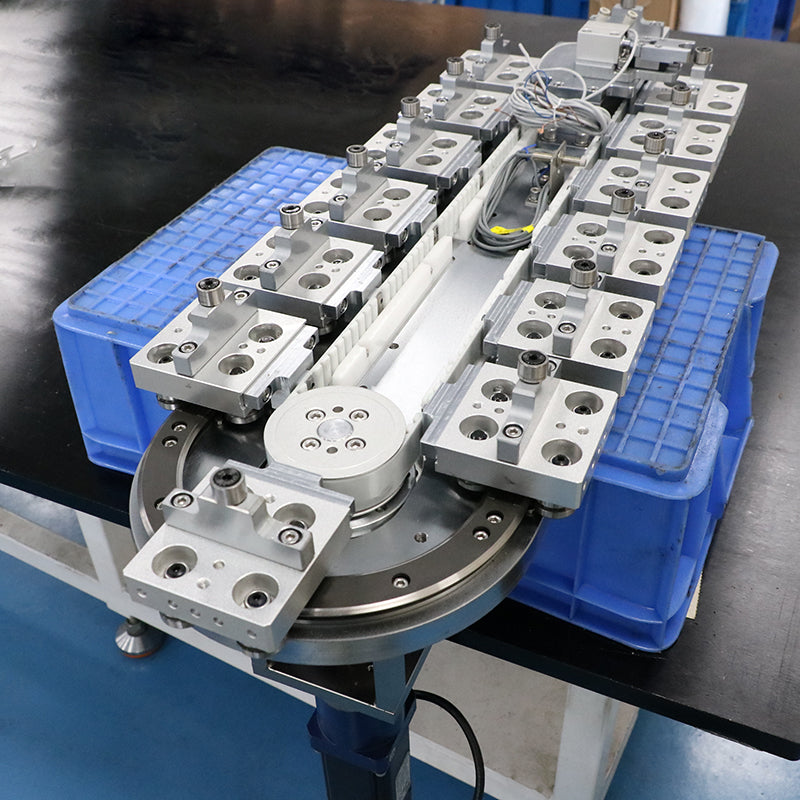

II. External Limiting Circular Guide Rail Conveyor Line: Stable Fixed-Point Stopping and Conveying

The circular guide rail conveyor line, combined with the external limiting linear guide rail module, ensures precise positioning and stopping during the cyclic conveying process. Each station can achieve precise limit braking. It effectively solves common problems such as workpiece misalignment, docking deviation, and station offset, ensuring uniform position and stable condition of workpieces during transportation, assembly, and inspection. The overall operation is smooth and the limit switches are sensitive, adaptable to multi-station cyclic operations, significantly improving the accuracy of process connections and operational stability of the production line.

III. Workpiece Positioning and Conveying Production Line: Precise Positioning and Efficient

 Mass Production The workpiece positioning and conveying production line is custom-designed based on an external limit-positioning ring guide rail system, specifically designed for the precise positioning, point-to-point conveying, and standardized assembly of various industrial workpieces. Relying on stable limit-positioning performance, the production line effectively reduces assembly errors and workpiece defect rates, minimizing manual correction processes. It is suitable for batch production of workpieces of various specifications, with strong positioning consistency and low equipment failure rate, helping factories achieve high-precision, high-stability, and high-efficiency automated positioning and conveying production.
