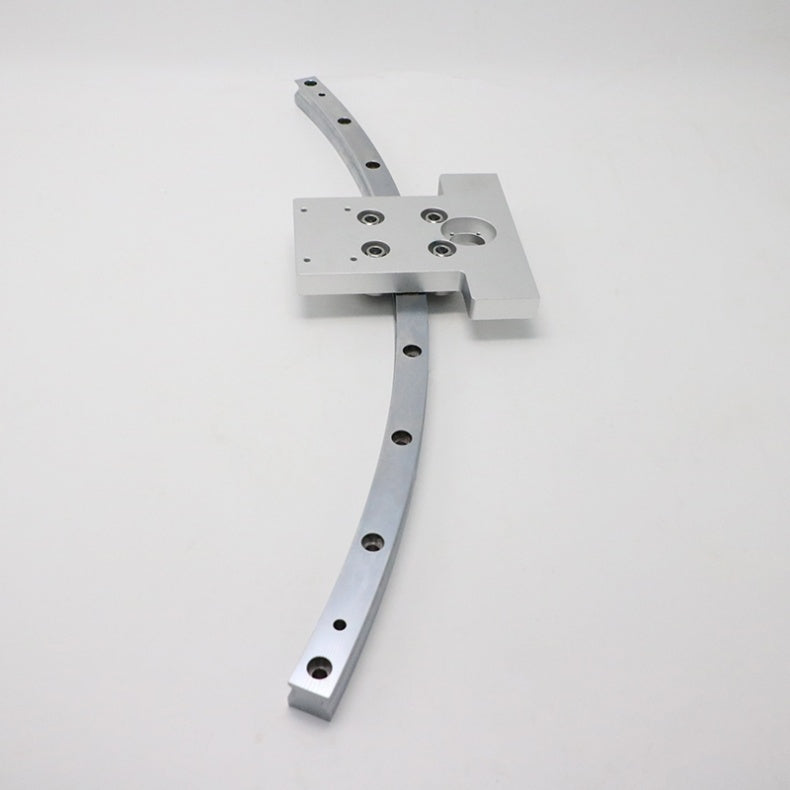

Extended Linear Guide Rails, Circular Guide Rail Conveyor Lines, Large Component Conveying Production Lines

I. Extended Linear Guide Rails: Stable Long-Distance Operation and Load Bearing

The extended linear guide rails adopt an extended, one-piece molded structure, effectively extending the effective stroke to meet the long-distance guiding and conveying needs of large components. The guide rails have sufficient overall rigidity and high splicing precision, making them less prone to vibration and deformation during long-distance operation, and providing balanced and stable load-bearing performance. Compared to ordinary short guide rails, they are suitable for longer workpieces and large-span work processes, offering precise positioning and smooth operation, effectively solving production challenges such as large spans, difficult alignment, and large deviations in the conveying of large components.

II. Extended Circular Guide Rail Conveyor Lines: Long-Distance Continuous and Efficient Flow

The circular guide rail conveyor line is equipped with extended linear guide rail modules, supporting long-distance, large-span cyclic conveying, suitable for the transfer of large components and heavy-duty parts. The rail connections are tight, with minimal cumulative error, ensuring smooth and stable conveying throughout the entire process, uniform load bearing, and effectively avoiding problems such as workpiece offset, tilting, and collision damage during conveying. The equipment is highly expandable, allowing for extended workstation processes to meet production line needs and adapting to continuous, long-cycle conveying operations of large components across multiple processes.

III. Large Component Conveying Production Line, Adapted for Mass Production of Large

 Components This large component conveying production line is custom-designed based on an extended circular guide rail system, specifically designed for the conveying, assembly, and testing of various large equipment components and heavy structural parts. It solves the pain points of traditional production lines, such as short travel distances and inability to adapt to long-distance conveying of large components. It boasts stable operation, high fault tolerance, and strong load capacity. It effectively improves the conveying accuracy and assembly consistency of large components, reduces workpiece wear, and enables standardized, continuous, and automated batch production of large components.
