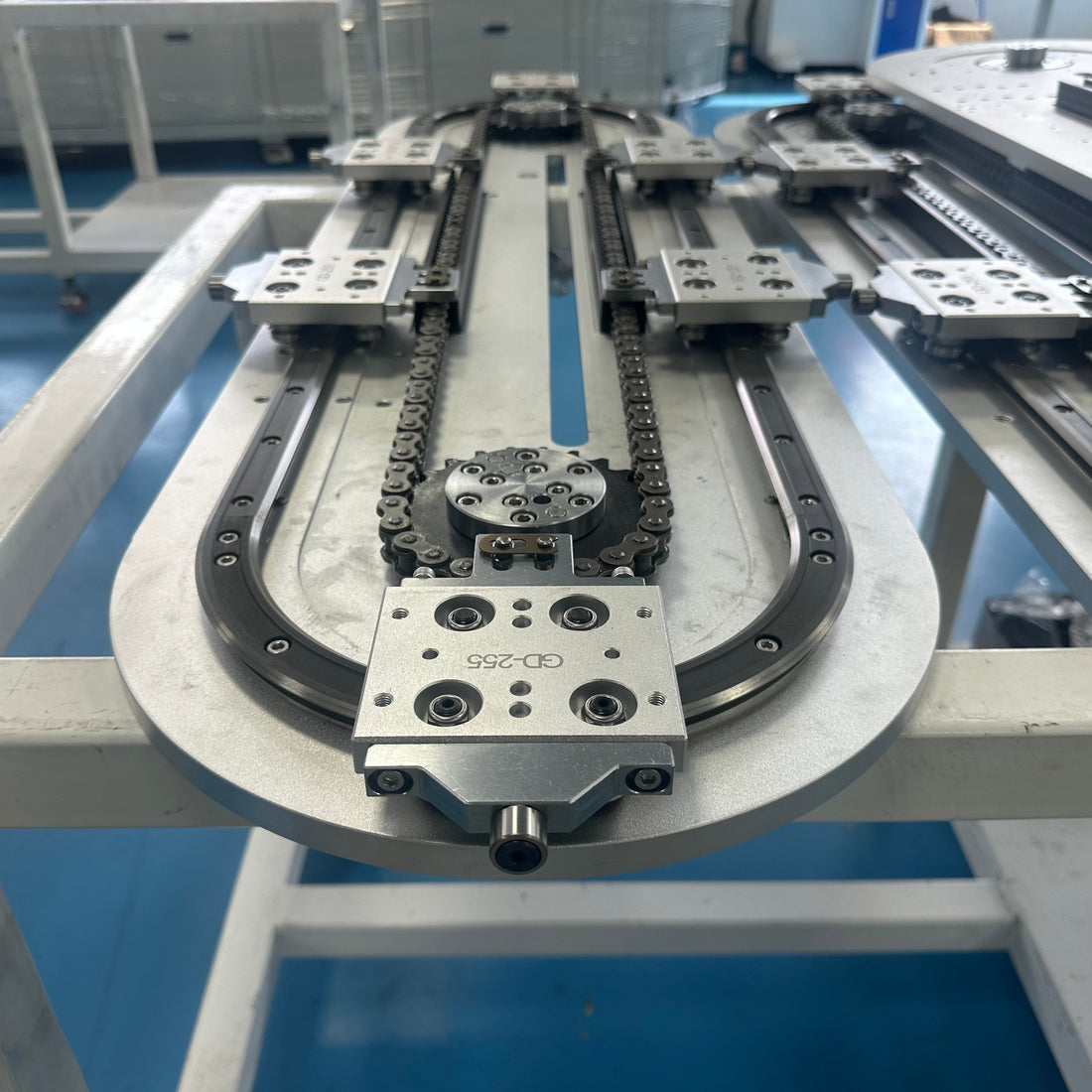

Modular High-Precision Circular Conveyance System

This system is an integrated closed-loop motion platform solution that combines drive, guidance, and structural components. It is designed to provide a space-efficient, highly rigid, reliable, and efficient solution for material circulation, multi-station transfer, and inspection/assembly processes in industrial automation lines. By adopting a pre-integrated modular architecture, the system significantly reduces on-site design, assembly, and commissioning efforts, lowering integration complexity and project lead time while ensuring consistent long-term performance.

Core Components and Operating Principle

The circular module is built upon a deeply engineered arc-shaped guideway and high-rigidity slider set, combined with synchronous belt drive technology to form the core motion unit. The standard integrated package includes the following key subsystems:

Main Structural Unit:

 A monocoque frame made of high-strength aluminum alloy, optimized through finite element analysis to provide a stable mounting base and load support.

Precision Motion Unit:

 Includes high-precision arc linear guideway pairs, low-noise slider assemblies, and adjustable preload mechanisms to ensure smooth and precise cyclic motion.

Synchronous Drive Unit:

 Integrated servo motor interface, precision reduction mechanism, timing pulleys, and high-tension-resistant toothed belts deliver stable and reliable driving force. A flexible coupling with angular compensation between the slider and the transmission belt effectively suppresses drive disturbances.

Auxiliary Functional Unit:

 Built-in centralized lubrication line interfaces and slider position sensing markers support automated maintenance and process monitoring.

Key Technical Advantages

High Dynamic Load Capacity and Space Efficiency:

Through optimized raceway geometry and load distribution design, the system achieves significantly higher static and dynamic load capacity and anti-tipping moment compared to conventional circular modules under strict dimensional constraints, saving valuable equipment space for core processes.

Motion Smoothness and Low-Maintenance Design:

The unique flexible transmission coupling solution eliminates stress concentration and vibration transfer caused by traditional rigid connections in reciprocating motion, ensuring high smoothness and low-noise operation throughout the system's service life. Integrated lubrication channels reduce maintenance frequency and complexity.

Plug-and-Play Modular Integration:

Core components are pre-aligned and functionally tested before leaving the factory. The system provides standardized mechanical interfaces and electrical connection definitions. Users can quickly complete mechanical installation and integrate with the main control system without complex motion component alignment or system calibration, dramatically shortening the time from deployment to production.

This system is suitable for high-end industrial applications that demand high space utilization, operational reliability, and deployment efficiency, such as precision assembly, automated inspection, semiconductor handling, and flexible manufacturing systems.
