Modular High-Speed Filling Production Line

In the field of liquid product packaging, our company has always been committed to independent R&D and technological innovation. To meet the market's demand for flexible and high-efficiency production, we have successfully developed a new generation of independently developed modular filling production lines. This production line can complete high-speed filling, capping, labeling, and palletizing for various bottle types within a compact space, with a stable production capacity exceeding 120 bottles per minute. The core of the entire line incorporates our self-developed Synchronous Positioning Conveyor System, which demonstrates stable and reliable performance during long-term continuous operation.

Core Technology

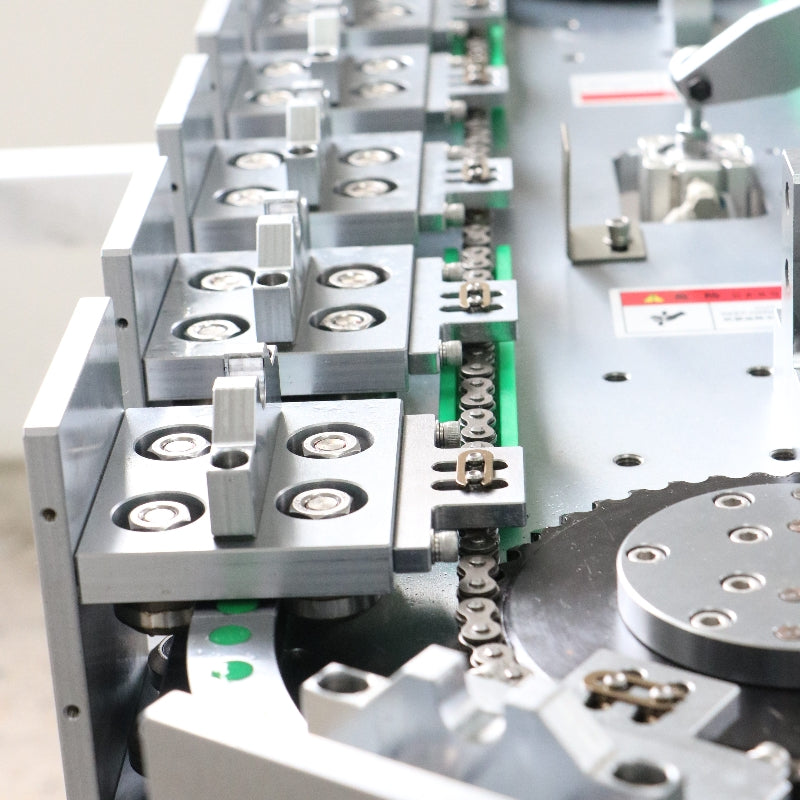

The production line features our independently developed High-Precision Conveyor and Positioning System. Through proprietary control software and a high-rigidity structural design, the system achieves precise synchronization during the conveying process. Over a 600mm conveying distance, the positioning time is less than 0.4 seconds, providing a solid foundation for reaching the designed production capacity. The system’s positioning accuracy reaches ±0.1mm, fully meeting production requirements.

System Configuration

The conveyor system is equipped with 24 independent conveying units. Utilizing our self-developed control technology, a single servo system ensures synchronized operation across all units. Each conveying unit can handle loads of up to 1.5kg, operating smoothly and reliably while quickly adapting to the production needs of different products.

Application Value

The filling production line, built entirely on proprietary technology, has been successfully implemented in industries such as beverages and condiments. Practical applications show that the time required to switch between product specifications on this production line can be reduced by over 60%. The equipment features a compact structure, stable operation, and easy maintenance, ensuring high-efficiency production while lowering the overall cost of ownership for customers. This fully independent domestic equipment highlights our company’s technical capabilities in the packaging machinery sector, providing customers with a reliable production solution.
