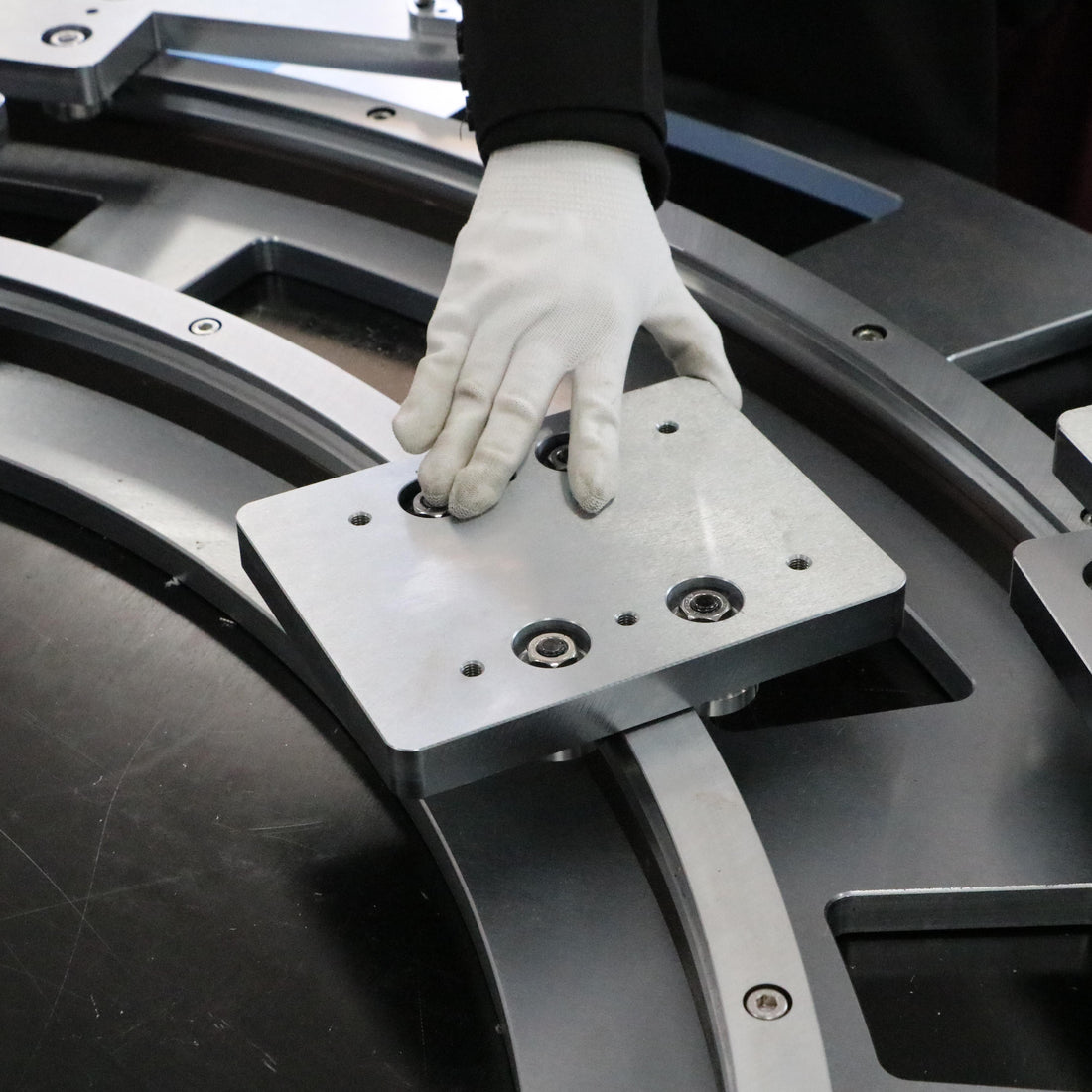

Pollution Protection Strategies for Linear Guides

1. Analysis of Pollution Types and Their Impact

Common pollutants in industrial production environments can be categorized into three main types: solid particles, liquid chemicals, and viscous residues. Among solid particles, large contaminants such as metal chips and welding slag can directly scratch the guideway raceway surface, leading to reduced operational accuracy and abnormal noise. Meanwhile, fine dust particles can penetrate sealing gaps, mixing with lubricating grease to form abrasive compounds that accelerate internal wear. Liquid pollutants, including coolants, moisture, and chemical solvents, can degrade lubrication performance and cause metal corrosion. Additionally, viscous substances like oil stains and adhesives can impair the smooth operation of the slider, reducing the system's dynamic responsiveness.

2. Systematic Protection Solutions

Sealing System Configuration serves as the first line of defense in dusty environments. It is advisable to select guide models equipped with both lip seals and labyrinth seals, as these two sealing structures can form an effective physical barrier. For applications involving splashing liquids, scrapers should be installed at the ends of the slider to promptly remove contaminants adhering to the guideway surface.

Material Selection is particularly important in humid or chemically corrosive environments. Linear guides made of stainless steel offer excellent corrosion resistance, while those treated with hard anodizing or Teflon coatings can withstand most chemical erosions. In clean environments such as food processing and pharmaceuticals, guide products designed to meet hygienic standards should be chosen.

Lubrication Management requires special attention in polluted environments. The use of high-viscosity grease with an NLGI grade of 2 or higher is recommended, as such greases exhibit better adhesion and resistance to washing out. In environments with high dust concentrations, lubrication intervals can be appropriately shortened to expel fine particles by injecting fresh grease into the system. For extreme working conditions, an automatic centralized lubrication system is advisable to ensure consistent and stable lubrication protection.

3. Selection and Application Recommendations

In ordinary machining workshops, compact linear guides with standard seals are generally sufficient for most needs. For equipment operating in high-pollution areas such as casting or wood processing, guide models with a sealing rating of IP54 or higher should be selected, and the addition of telescopic protective covers should be considered. For food processing equipment subjected to frequent high-pressure washing, fully sealed linear guide systems made entirely of stainless steel are essential. In outdoor or coastal environments with high salt spray, in addition to selecting stainless steel materials, additional surface treatment processes should be considered.

4. Maintenance and Management Guidelines

Establishing a regular inspection system is crucial. It is recommended to clean the exposed parts of the linear guides monthly and use specialized testing tools to measure changes in operational noise and vibration. Quarterly inspections should involve removing one end cover to check for internal contamination, with sealing configurations or lubrication plans adjusted based on the findings. Spare guides stored for extended periods should be coated with anti-rust oil and wrapped in moisture-proof materials to prevent performance degradation due to environmental factors.

Through scientific selection and configuration, along with standardized maintenance and management, the service life of linear guides in polluted environments can be extended by over 40%, while maintaining stable operational accuracy. A systematic protection strategy not only reduces equipment failure rates but also minimizes production losses caused by unexpected downtime, optimizing the total lifecycle cost of the equipment.
