Arc-Adaptive Linear Guides, Circular Guide Conveyor Lines, and Irregular Workpiece Machining and Assembly Lines

I. Arc-Adaptive Linear Guides: Adapting to Irregular Movement Requirements

Arc-adaptive linear guides break through the limitations of traditional linear guides' single movement, possessing flexible arc-adaptive capabilities. They can accommodate both linear and arc-shaped composite movements, conforming to the irregular machining trajectories of various irregular workpieces. The guide rails offer high precision fit, smooth and stable operation, uniform force distribution, and are less prone to jamming. They can accurately align according to the machining curvature and assembly angle of irregular workpieces. The overall structure has sufficient rigidity and strong adaptability, meeting the guiding requirements of non-standard machining of irregular parts and assembly at special angles, solving the production problem of ordinary guide rails being unable to adapt to arc-shaped processes.

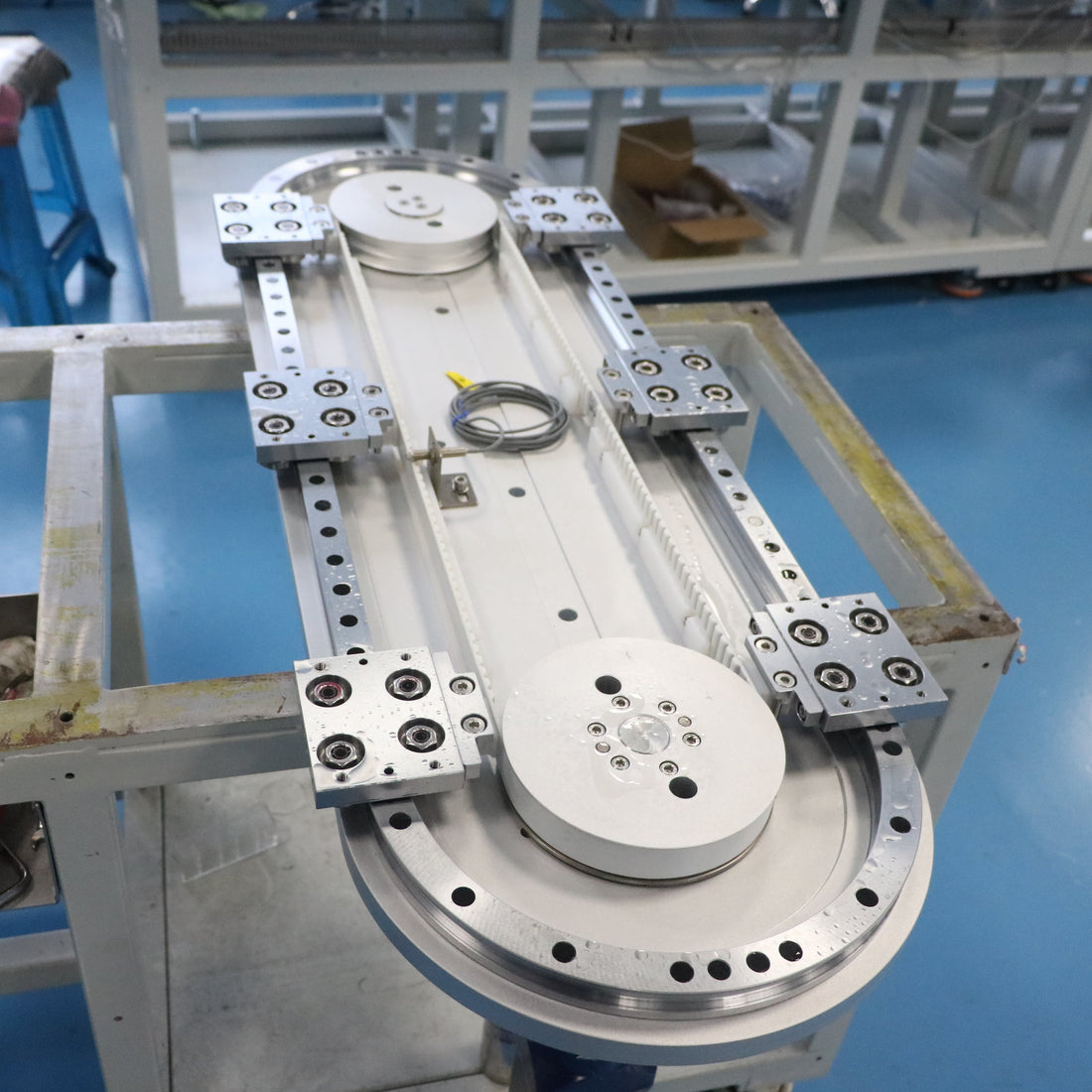

II. Arc-Adaptive Circular Guide Conveyor Lines: Flexible Circular Conveying

Circular guide conveyor lines equipped with arc-adaptive linear guide modules can perfectly adapt to circular arc circular trajectories, offering high positioning fit and stable and uniform conveying. Compared to traditional conveyor equipment, this conveyor line can flexibly adapt to the cyclical transfer of irregularly shaped workpieces and can accurately match multi-angle processing and multi-directional assembly processes. The equipment operates with low noise and minimal positioning error. Its closed-loop circulation structure is compact and efficient, enabling continuous and stable transfer of irregularly shaped workpieces and adapting to the routine production of various specifications of non-standard irregularly shaped parts.

III. Irregularly Shaped Workpiece Processing and Assembly Line:

Flexible and Efficient Non-Standard Production This irregularly shaped workpiece processing and assembly line is custom-designed based on an arc-shaped adaptive ring guide system, specifically designed for the processing, bonding, assembly, and inspection processes of various irregular, arc-shaped, and irregularly shaped workpieces. The production line offers flexible positioning and wide adaptability, compatible with the production of various irregularly shaped workpieces without frequent changes of tooling fixtures. Stable and precise operation effectively improves the assembly fit and finished product qualification rate of irregularly shaped workpieces, significantly reduces processing defects in non-standard products, and achieves automated, flexible, and high-efficiency mass production of irregularly shaped workpieces.
